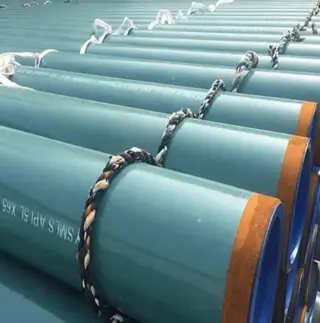

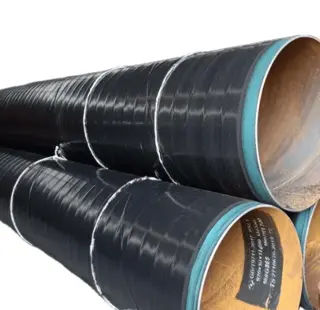

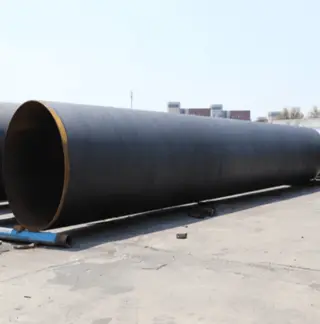

Carbon Steel Price Per Meter API 5L Grade B 3PE Coated API5l X52 Seamless Pipe 30’’ STD
Key Specifications / Features
Model no.: HX-COATED PIPE-176 Hits: 46
China manufacturer of Carbon Steel Price Per Meter API 5L Grade B 3PE Coated API5l X52 Seamless Pipe 30’’ STD
Request a quote
share
Tags
Detail Information
Standard: API 5L-2009 ISO 3183-2007 DIN 30670 ( Coating)
Steel Grades: Gr. B X42 X46 X52 X56 X60 X65 X70 L245 L290 L320 L360 L390 L415 L450 L480
Size Range: OD:1/2” TO 36”. WT: 3mm To 45mm
Coating Thickness: 2mm- 5mm
Manufacturing Process : Hot Rolled / ERW /LSAW
Application:The external coating is mainly used for anti-corrosion protection for liquid pipes before burying.Such pipes has been widely used in rugged environment

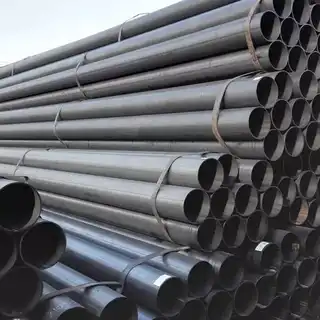

Packing: External Black Painting ,Both Side With End Caps, In Bundles by Steel Strips,Covered by Waterproof.
Steel Grades: Gr. B X42 X46 X52 X56 X60 X65 X70 L245 L290 L320 L360 L390 L415 L450 L480
Size Range: OD:1/2” TO 36”. WT: 3mm To 45mm
Coating Thickness: 2mm- 5mm
Manufacturing Process : Hot Rolled / ERW /LSAW
Application:The external coating is mainly used for anti-corrosion protection for liquid pipes before burying.Such pipes has been widely used in rugged environment
Packing: External Black Painting ,Both Side With End Caps, In Bundles by Steel Strips,Covered by Waterproof.
| DELIVERY CONDITION | |||||||
| Steel grade | Delivery condition | ||||||
| BNS(L245NS) | Normalizing rolled, normalizing formed, normalized, normalized and tempered | ||||||
| X42NS(L290NS) | Normalizing rolled, normalizing formed, normalized, normalized and tempered | ||||||
| X46NS(L320NS) | Normalizing rolled, normalizing formed, normalized, normalized and tempered | ||||||
| X52NS(L360NS) | Normalizing rolled, normalizing formed, normalized, normalized and tempered | ||||||
| BQS(L245QS) | Quenched and tempered | ||||||
| X42QS(L290QS) | Quenched and tempered | ||||||
| X46QS(L320QS) | Quenched and tempered | ||||||
| X52QS(L360QS) | Quenched and tempered | ||||||
| X56QS(L390QS) | Quenched and tempered | ||||||
| X60QS(L415QS) | Quenched and tempered | ||||||
| MECHANICAL PROPERTIES | |||||||
| Steel Grade | Strtch Performance | Impact energy(J） |
Hardness | ||||
| Yield strength | Tensile strength | Elongation | |||||
| Mpa | Mpa | % | Min | Max | |||
| Min | Max | Min | Max | ||||
| BNS(L245NS) BQS(L245QS) | 245 | 450 | 415 | 760 | As per standard |
27 | 22HRC OR 250HV10 |
| X42NS(L290NS) X42Q(L290QS) | 290 | 495 | 415 | 760 | 27 | ||
| X46NS(L320NS) X46Q(L320QS) | 320 | 525 | 435 | 760 | 27 | ||
| X52NS(L360NS) X52Q(L360QS) | 360 | 530 | 460 | 760 | 27 | ||
| X56QS(L390QS) | 390 | 545 | 490 | 760 | 27 | ||
| X60QS(L415QS) | 450 | 600 | 520 | 760 | 27 | ||
| CORROSION RESISTANCE TEST | |||||||
| Corrosion resistance test | Test method | Solution | Benchmark stress |
Test duration (hou) |
Test result | ||
| SSC test | NACE TM0177-2005 |
Solution A | SMYSx72% | 720 | No break | ||
| HIC test | NACE TM0284-2003 |
Solution A | - | 96 | CSR≦2.0% Qualified CTR≦5.0% Qualified CLR≦15.0% Qualified |
||
